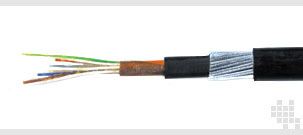

Telephone
Cables
ApplicationRef.

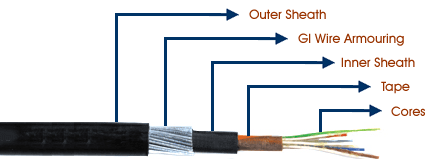

SpecificationConstruction |
| Conductor | Electrolytic Grade Anneled Tinned Copper Solid Conductor. As per Table 1 of S/WS-113C. |
| Insulation | Hard Grade PVC with high Insulation Resistance |
| Colour Scheme | As Per Table 2 of S/WS - 113C |
| Pairing | Two, Three or Four Insulated wires are twisted uniformally to form Cabling element i.e. pair, Triples or Quads. |
| Laying | The pair, triples or Quads are laid - up in concentric layers with Polyster Taping over laid up cores. |
| Screen | Polyster backed Aluminium Mylar Tape of 0.04mm thickness wrapped Alongwith Tinned Copper Drain wire, which shall be in continuous contact with the metallic side of Aluminium Mylar. |
| Sheath | Weather resistance high quality PVC. |
| Armouring | Galvanized steel wire/strip Armoured as per IS: 1554 (Part-1) 1988. |
|
Conductor |
| Diameter of Conductor | Nominal Weight of Conductor | Max. Resistance of Cond. | Min Elong-ation | Radial Thick-ness of Insulation | Max. External Dia of Core | |
| Minimum | Nominal | |||||
| mm | mm | Kg/Km | Ohm/Km | % | mm | mm |
| 0.49 | 0.50 | 1.75 | 92.20 | 15 | 0.20+0.05 -0.02 | 1.00 |
| 0.59 | 0.60 | 2.50 | 64.00 | 15 | 0.20+0.05 -0.02 | 1.10 |
| 0.69 | 0.70 | 3.40 | 45.70 | 15 | 0.25+0.05 -0.02 | 1.30 |
|
Specification
|
|
